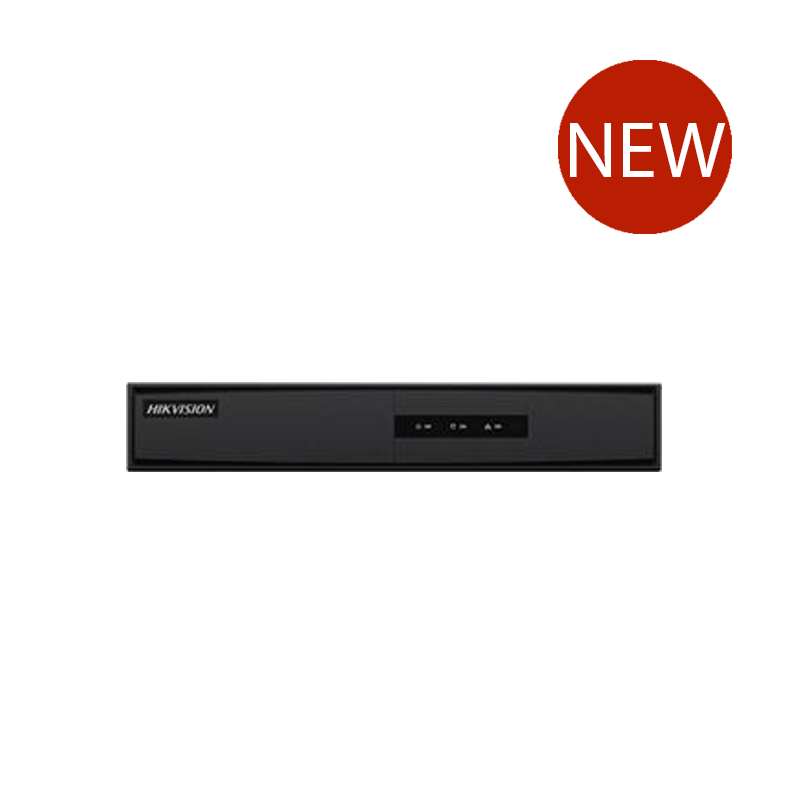

ĐẦU GHI TURBO HD DVR 8 KÊNH 1080P DS-7208HQHI-F1/N

Liên hệ

– Hỗ trợ camera HD-TVI 1080P, Analog + thêm 2 Camera IP ONVIF 2MP
– Hỗ trợ H.264+ tiết kiệm 50% dung lượng lưu trữ
– 8 ngõ vào video, 1 cổng audio input, 1 cổng RS485, 1 cổng SATA hỗ trợ ổ cứng 6TB.
– Độ phân giải ghi hình: 1920×1080P: 12 fps/ch, 1280×720P: 25(P)/30(N) fps/ch
– Cổng ra HDMI và VGA
– Tối đa 128 người truy cập cùng lúc,
– Nguồn 12V
– Kích thước: 315 × 242 × 45 mm

Gọi đặt mua 0913430939 hoặc 0913430939 (7h30 - 22h) Hướng dẫn

Gọi 1800.1060 giao hàng tận nơi miễn phí

Thanh toán khi nhận hàng bằng tiền mặt, thẻ ATM, Visa, Master

Sản phẩm hot

Danh mục đang cập nhật sản phẩm

Mô tả
Tag tùy chỉnh
đánh giá(app)

Video/Audio Input
Audio Input:	\|	1-ch
Video Compression:	\|	H.264,H.264+
Analog and HD-TVI video input:	\|	8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	\|	720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
IP Video Input:	\|	2-ch Up to 2MP resolution
Video Input Interface:	\|	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	\|	G.711u
Audio Input Interface:	\|	RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:	\|	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Output:	\|	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output:	\|	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:	\|	1080P lite mode: Main stream:1080P(lite)(real-time)/720P(lite)(real-time)/WD1/VGA/4CIF/CIF Sub-stream:WD1(non-real-time)/4CIF(non-real-time)/CIF/QCIF/QVGA non 1080P lite mode:Main stream: 1080p(non-real-time)/720P(non-real-time)/720P/WD1/VGA/4CIF/CIF Sub-stream: WD1(non-real-time)/4CIF(non-real-time)/CIF/QCIF/QVGA
Frame Rate:	\|	Main stream: 1/16 fps ~ Real time frame rate Sub-stream: WD1/4CIF@12fps,CIF/QVGA/QCIF@Real time frame rate
Video Bit Rate:	\|	32 Kbps-6 Mbps
Stream Type:	\|	Video/Video&Audio
Audio Output:	\|	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:	\|	64kbps
Dual Stream:	\|	Support
Playback Resolution:	\|	1080P/1080P(lite)/ 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Synchronous Playback:	\|	8-ch
Network management
Remote connections:	\|	128
Network protocols:	\|	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:	\|	1 SATA Interface
Capacity:	\|	Up to 6 TB capacity for each disk
External Interface
Network Interface:	\|	1; 10M / 100M self-adaptive Ethernet interface
USB Interface:	\|	2 USB 2.0 Interfaces
Serial Interface:	\|	1; standard RS-485 serial interface, half-duplex
General
Power Supply:	\|	12V DC
Consumption:	\|	≤ 20W(without hard disks)
Working Temperature:	\|	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity:	\|	10% ~ 90%
Chassis:	\|	Standalone 1U chassis
Dimensions:	\|	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight:	\|	≤2 kg(4.4lb)
